Dice

This section assumes you are very familiar with the concepts, terms and ideas for protograf as presented in the Basic Concepts , that you understand all of the Additional Concepts and that you’ve created some basic scripts of your own using the Core Shapes. You also be familiar with the various types of shape’s properties described in the Customised Shapes

Overview

Dice are widely used in many games, so being able to easily add them to a graphic layout can be useful.

D6 Properties

The six-sided die object D6 shares some of the basic properties of many other shapes, with additional properties of pips and random, as well as the various pip_ properties.

d6 Examples

The examples below shows how a D6 can be created and styled.

D6 Styling

^

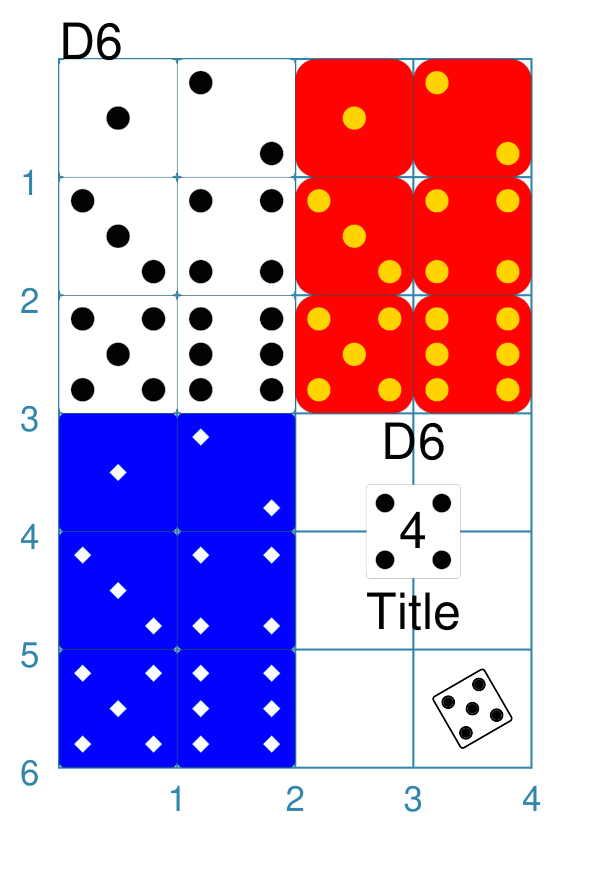

This example shows D6 objects constructed using these commands:

D6(x=0, y=0)
D6(x=1, y=0, pips=2)
D6(x=0, y=1, pips=3)
D6(x=1, y=1, pips=4)
D6(x=0, y=2, pips=5)
D6(x=1, y=2, pips=6)

red_yello = Common(
    pip_fill="gold", pip_stroke="orange",
    fill="red", rounding=0.175)
D6(x=2, y=0, common=red_yello)
D6(x=3, y=0, pips=2, common=red_yello)
D6(x=2, y=1, pips=3, common=red_yello)
D6(x=3, y=1, pips=4, common=red_yello)
D6(x=2, y=2, pips=5, common=red_yello)
D6(x=3, y=2, pips=6, common=red_yello)

blu_wite = Common(
    pip_fill="white",
    pip_stroke="aqua",
    pip_shape="diamond",
    fill="blue", pip_fraction=0.15)
D6(x=0, y=3, common=blu_wite)
D6(x=1, y=3, pips=2, common=blu_wite)
D6(x=0, y=4, pips=3, common=blu_wite)
D6(x=1, y=4, pips=4, common=blu_wite)
D6(x=0, y=5, pips=5, common=blu_wite)
D6(x=1, y=5, pips=6, common=blu_wite)

D6(
    x=2.6, y=3.6, side=0.8,
    pips=4,
    title="Title",
    heading="D6",
    label="4")
D6(
    cx=3.5, cy=5.5, side=0.5,
    pips=5,
    stroke_width=0.5,
    rotation=30)

All of the D6 shapes are constructed in the same way — setting an x and y value (or cx and cy).

The red dice show how the pip stroke and fill can be set to different colors.

The blue dice show how the pip size and shape can be changed. Size is represented as a fraction of the width/height of the die. The default size is one-fifth (0.2) but it can be as small as 0.1 or as large as 0.33. The default pip shape is a circle, but can also be assigned to be a diamond.

The white dice in the lower-right show how the D6, like many other shapes, can be assigned text captions, and that it can be rotated. The stroke_width of the rotated die has also been made thicker.
