Counters

These examples are meant to demonstrate the type of output you can expect to create with protograf. They are not meant to be exhaustive or comprehensive!

Bear in mind that the images shown in these examples are lower-resolution screenshots; the original PDFs that can be generated from the source scripts will demonstrate full scalability.

Wargame - Basic Counters

↑

Title

Basic Wargame Counters

Script

counters.py

Discussion

This example shows how to construct a set of counters.

The “placeholder” for the counters is the CounterSheet; here it defines how many are needed and what their basic size and default color is, as well the grouping and spacing between the groups:

CounterSheet(
    counters=18,
    width=2.6, height=2.6,
    fill="yellow",
    grouping_cols=3, grouping_rows=2,
    spacing_x=2.6, spacing_y=1.3
    )

The layouts for the counters are constructed from a series of a basic shapes. Intermediate steps are stored via assigned names; this allows them to be reused in different places, for different counters that share common elements.

Remember that using lowercase names for the shape commands means that they will not be drawn immediately, but only when the card itself is drawn.

Following is “walkthrough” on how some (not all) of the counters from this example are created.

First, the shapes forming the conventional symbol for an infantry unit (‘X’ in a box) are assigned names and then combined with a group function:

out = rectangle(
  x=0.8, y=1.2, width=1.0, height=0.6,
  stroke_width=0.5, fill=None)
lu = line(
  x=0.8, y=1.2, x1=1.8, y1=1.8,
  stroke="black", stroke_width=1.5)
ld = line(
  x=0.8, y=1.8, x1=1.8, y1=1.2,
  stroke="black", stroke_width=1.5)
inf = group(out, lu, ld)

Then text and color (for one of the country’s armies) are defined:

brown = "#B6A378"
inf_A = text(
  font_name="Helvetica", font_size=18,
  x=1.3, y=0.5, text="2-3-4")
division = text(
  font_name="Helvetica", font_size=12,
  x=1.3, y=1.9, text="XX")

Now the counter outline is defined:

russian = rectangle(
   x=0, y=0, width=2.6, height=2.6,
   stroke_width=1, fill=brown)

And finally the complete counter itself is defined in a two step process, also using the group function to combine different, previously-defined elements:

inf_russian = group(russian, inf)
inf_russian_A = group(inf_russian, inf_A, division)

Finally, the counter, or counters, can be drawn in one or more positions on the countersheet:

Counter("13-15", inf_russian_A)

These counters are shown outlined in blue in the screenshot. Note that the blue line was not created as part of the script but just added in with a graphics editor.

Bear in mind that counters are drawn in order, starting from the top-left, then moving across to the right to complete a row, then moving down to the next row - so in this example, counters 1 to 6 are drawn along the top row — in two groups of 3 each — followed by 7 to 12 on the next row down, and so on.

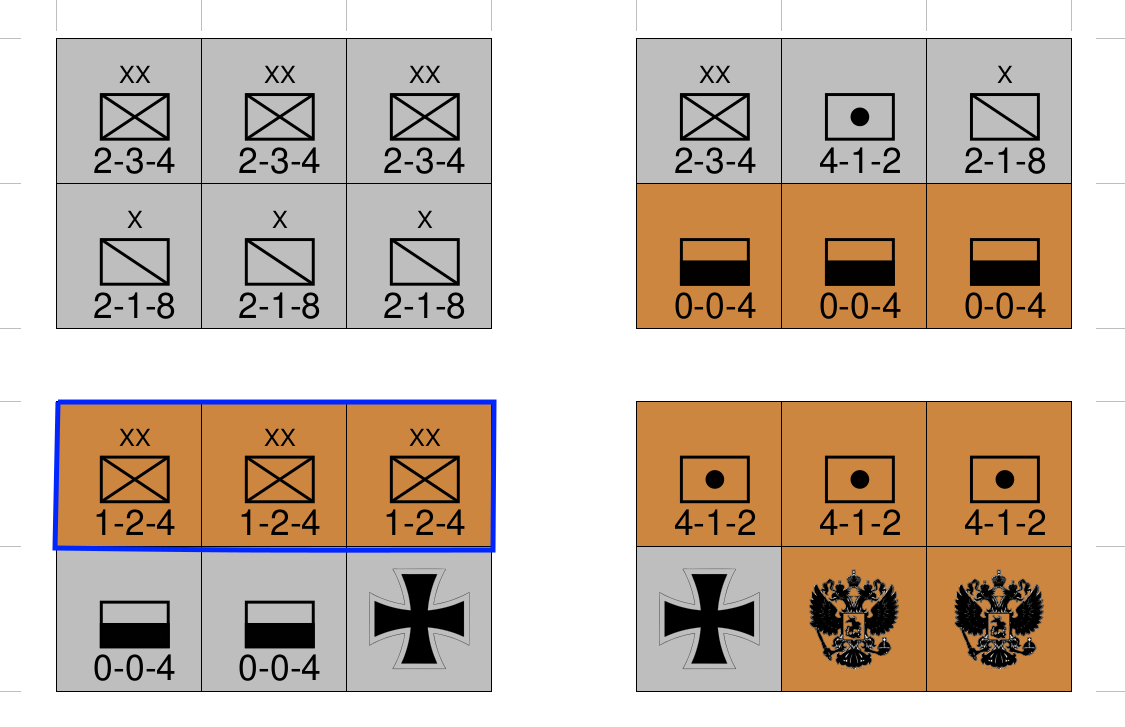

Screenshot

 ../_images/counters_basic.png

Wargame - Counters from CSV

↑

Title

Wargame Counters from a CSV file

Script

counters_csv.py

Discussion

This example shows how to construct a set of counters using data from a plain text CSV (comma-separated values) file.

The CSV file contains data such as:

NATION,TYPE,SIZE,VALUE,ID
...
rus,INF,XX,2-3-4,55R/1
rus,INF,XX,2-3-4,57R/1
rus,INF,XX,2-3-4,72R/1
...
ger,MARKER,,,
ger,MARKER,,,

The data is loaded into the script via the Data command, for which only the filename is needed:

Data(filename="counters.csv")

Using this command means that the number of counters in the CounterSheet will be based the number of rows in the file.

In general, every line in the file corresponds to a counter that will be drawn, and defines key values that will determine how that counter will be drawn.

Elements that should appear on a counter, and whose values or settings should be derived from data in the file, can now refer to the headings appearing at the start of the file; for example:

ident = text(
    text=T('{{ID}}'),
    font_name="Helvetica", font_size=12,
    x=0.25, y=0.7,
    width=0.8, height=1.4,
    wrap=True, align='centre',

Here the text that will be used depends on data in the ID column. This can be accessed by the T({{ID}}) (template command). So, in the first row of data, shown in the file snippet above, contains an ID value of 55R/1.

When this is referenced by a Counter in the script:

Counter("all", value, size, ident)

ident will use the text in the ID column and assign it to the counter being drawn. You can see the values from the snippet of CSV shown above on the left side of the counters outlined in blue in the screenshot.

It is possible to do conditional assignment using an S (for Select) command; for example:

Counter(
  "all",
  S("{{ TYPE == 'MARKER' and NATION == 'ger' }}",
  marker_german))

Here, the marker_german element (which happens to link to an image) will only be drawn if the row in the CSV file meets both of two conditions, using the S() command:

  1. it has a TYPE value equal to MARKER, and

  2. it has a NATION value equal to ger

Note that both examples ensure that the case (upper or lower) is being matched correctly.

An example of this is last two rows from the snippet of CSV shown above. The resulting counters are outlined in yellow in the screenshot.

Screenshot

 ../_images/counters_csv.png

Wargame - Counters from Excel

↑

Title

Wargame Counters from an Excel file

Script

counters_excel.py

Discussion

This example shows how to construct a set of counters using data from an Excel file (“.xls” format).

This example is effectively exactly the same as the ones above, with the only difference being the data source file:

Data(filename="counters.xls")

Hint

It is possible - maybe even preferable! - to use a font for common/standard military unit icons; see, for example, the JZNATO v11 font available from: https://github.com/jzedwards/jzfonts

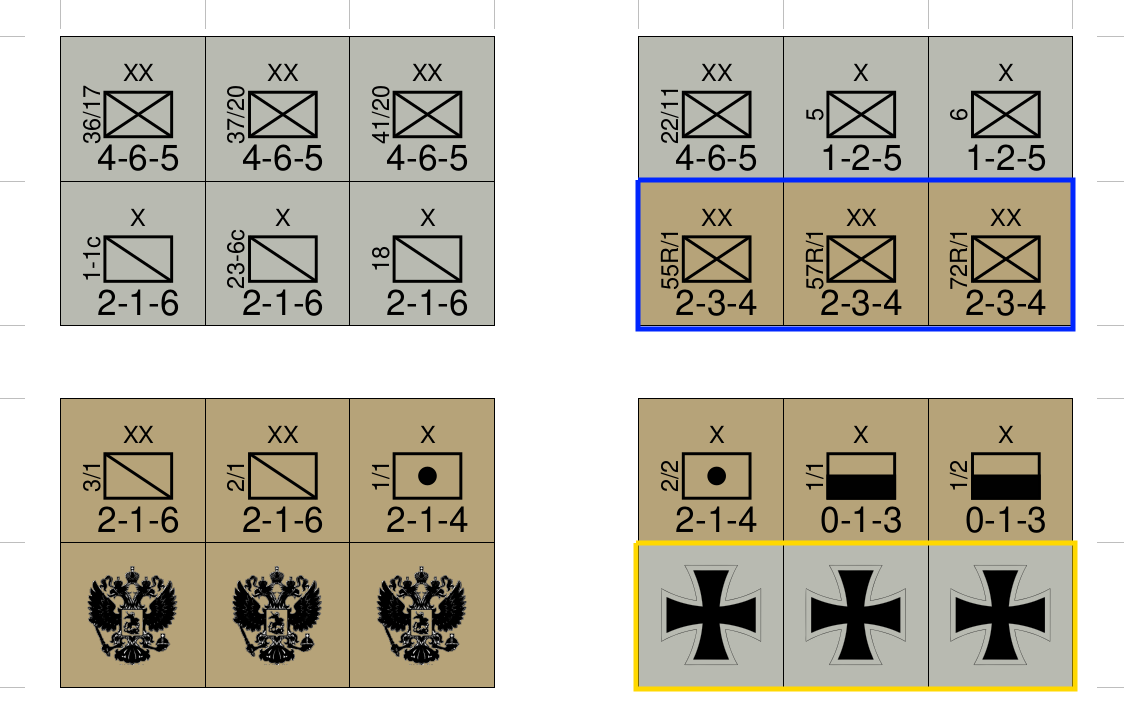

Screenshot

 ../_images/counters_excel.png

Wargame - Blocks from CSV

↑

Title

Wargame Block Labels from a CSV file

Script

blocks_csv.py

Discussion

This example shows how to construct a set of labels, designed to be attached to small wooden blocks, using data from a plain text CSV (comma-separated values) file.

The same basic approach that is described in previous examples applies here. The CSV looks like:

SIDE,TITLE,MOVE,STRENGTH,DOTS,SHIELD,BORDER,IMAGE
English,DURHAM,2,B2,4,red,#57762C,
...
English,NORSE, ,A2,3,1,#416E83,viking.png

Of interest, is that second-last column in each row defines a hexadecimal color (see colors) which can used, for example, via:

outline = rectangle(
  x=0.45, y=0.45,
  width=2.0, height=2.0,
  stroke_width=1,
  stroke=T('{{BORDER}}'), fill=None)

As described previously, the T() command allows the hexadecimal color value from the BORDER column to be used for the stroke property of the Rectangle.

These counters can also contain images, for example:

pic = image(
    T('images/{{IMAGE}}'),
    x=0.7, y=0.95, width=1.5, height=1.1)

This references the last column, called IMAGE of the CSV. If the column is empty, then no image is drawn.

Another item of interest is the use of the Sequence command to create the small squares that run along the edge of each counter/label:

lbrown = "#F1D7B5"
top4 = sequence(
     square(
       x=0.9, y=2.35, side=0.25,
       stroke=lbrown, stroke_width=1,
       fill=T('{{BORDER}}')),
     setting=(1, 4),
     gap_x=0.29)

Because its known that a counter/label always has a set of sequences that proceed, with decreasing length, in clockwise order, its possible to use group() commands to create all possible combinations of such sets of sequences.

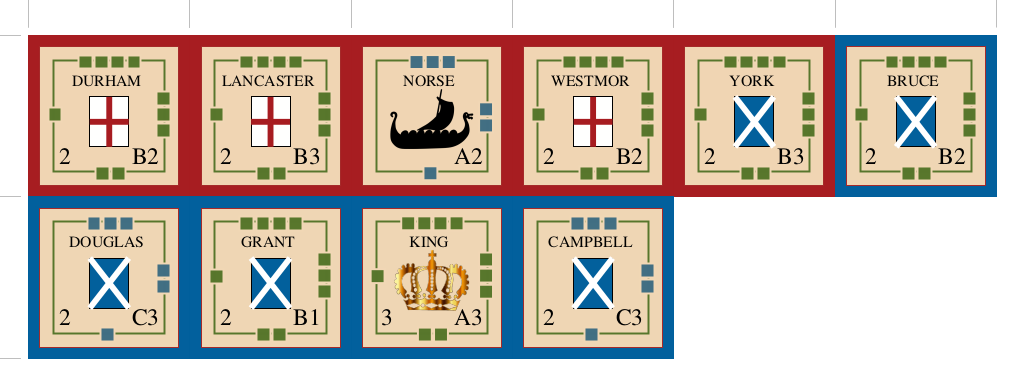

Screenshot

 ../_images/blocks_csv.png

Wargame - Counters from Excel - Commercial

↑

Title

Commercial Wargame Counters with data in an Excel file

Script

counters_doagc.py

Data

DOAGC.xlsx

Discussion

This example shows how to construct a set of counters using data from an Excel file (“.xlsx” format).

This example is similar the same as the ones that use Excel as a data source:

Data(filename="DOAGC.xlsx")

Here, the full counter sheet for a commercial game, published by SPI in 1973 — Destruction of Army Group Center — has been reproduced.

It makes use of the JZNATO font available from: https://github.com/jzedwards/jzfonts to display common/standard military unit icons, and the Univers LT Std font from https://www.cdnfonts.com/univers-lt-std.font to display text.

In addition to this, the example also shows how to use zones property of the CounterSheet command to add text and blocks of color to the counter sheet — note that these are drawn first, before any counters!

Note that while the counters here are outlined in black for ease of viewing, in practice these outlines would be turned off as the cut marks visible around the edge of the page are the preferred method for enabling cutting out a prototype.

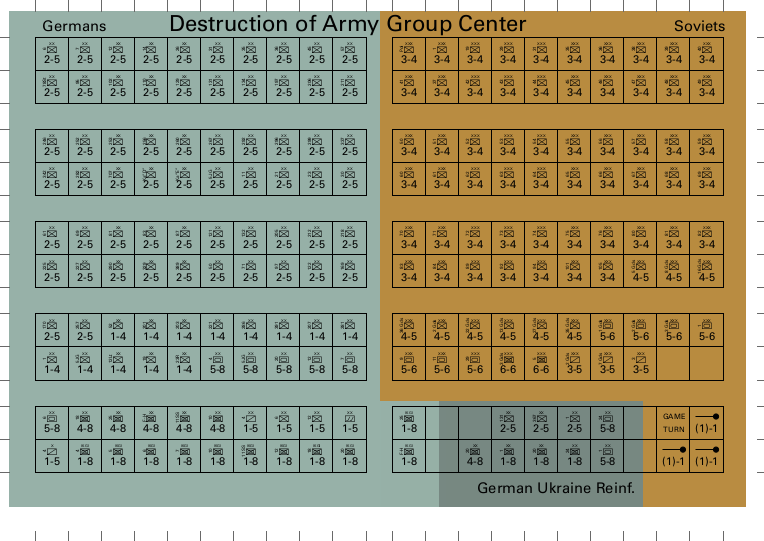

Screenshot

 ../_images/doagc_full.png

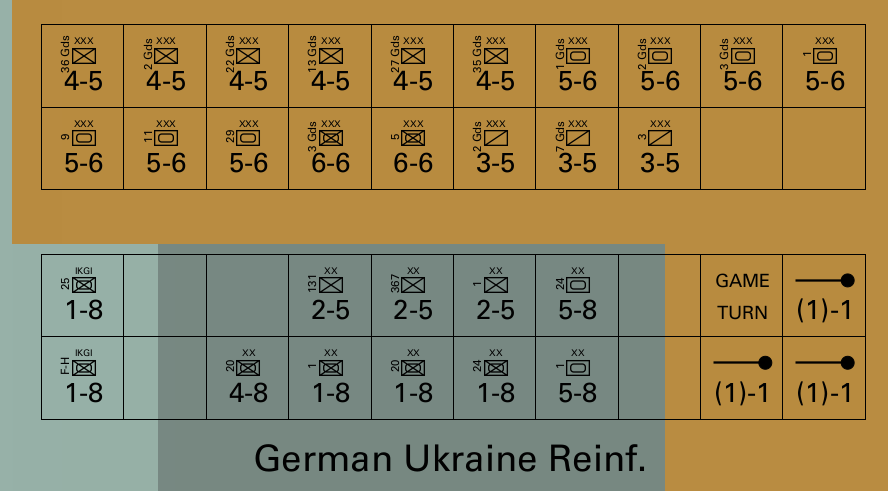

Zoom-In

 ../_images/doagc_zoom.png
